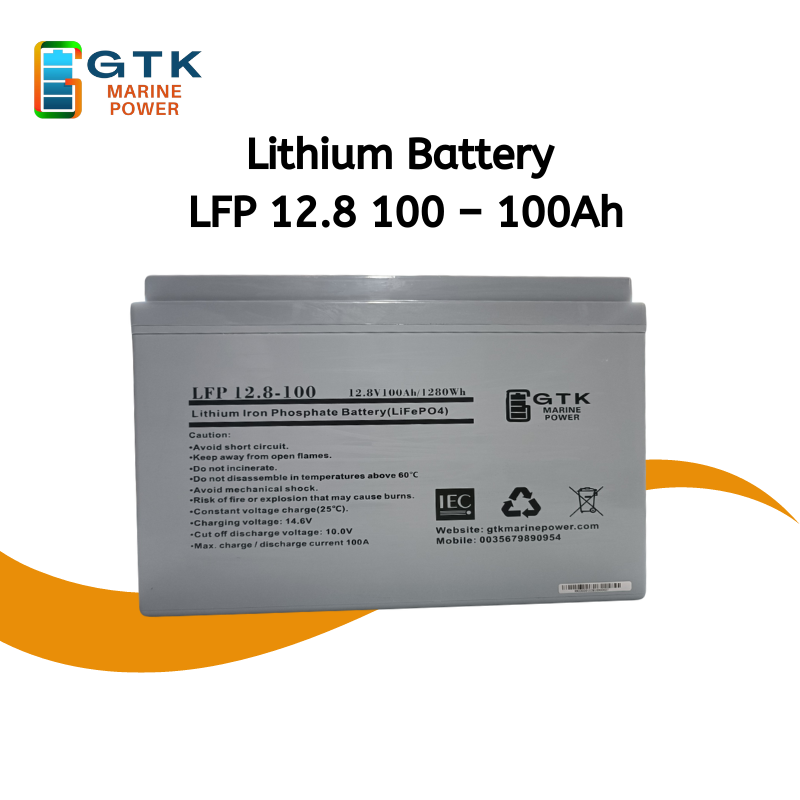

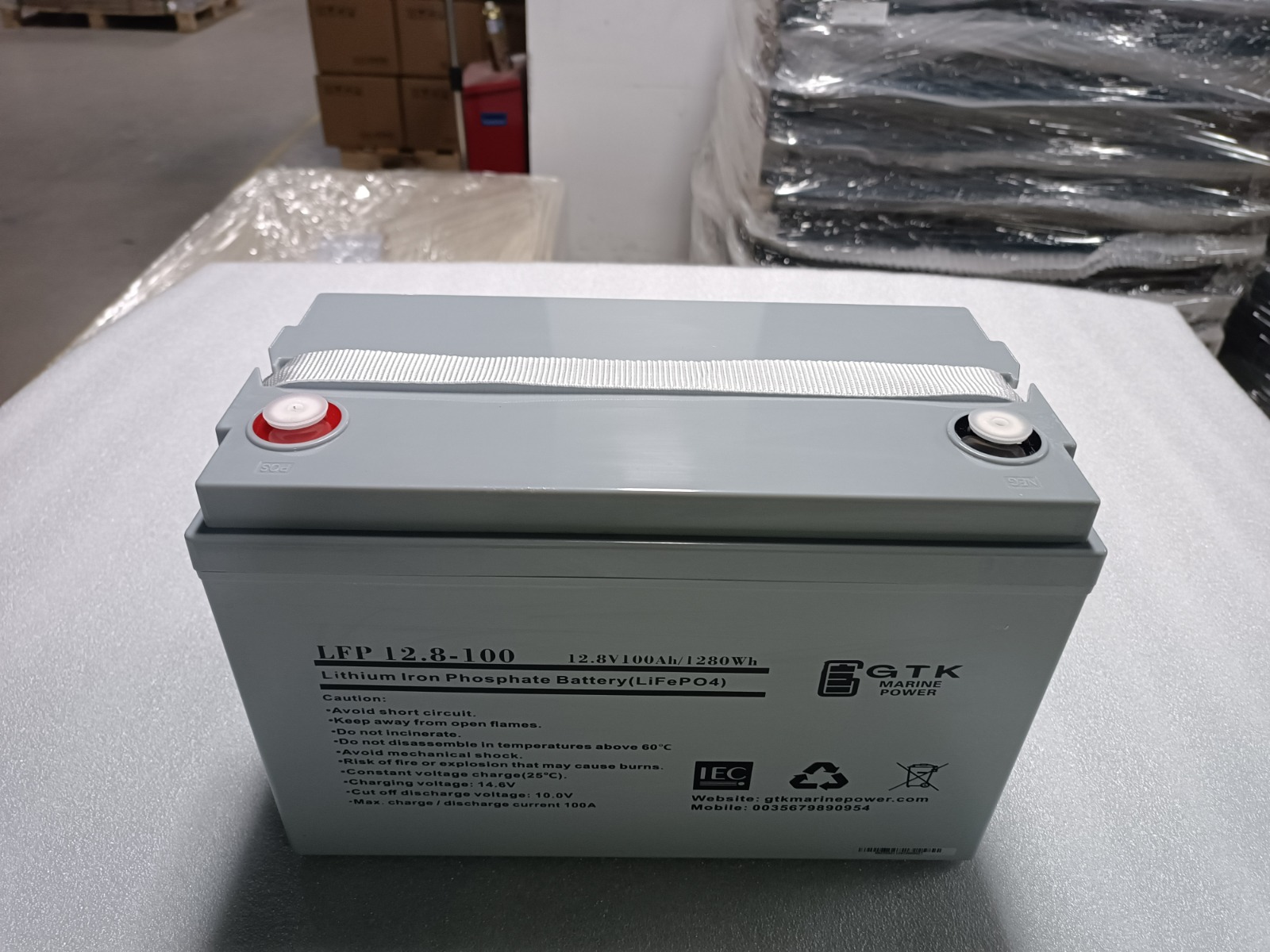

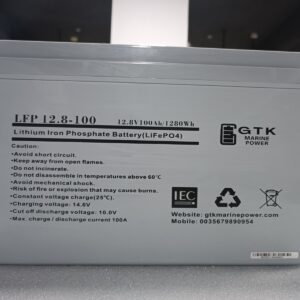

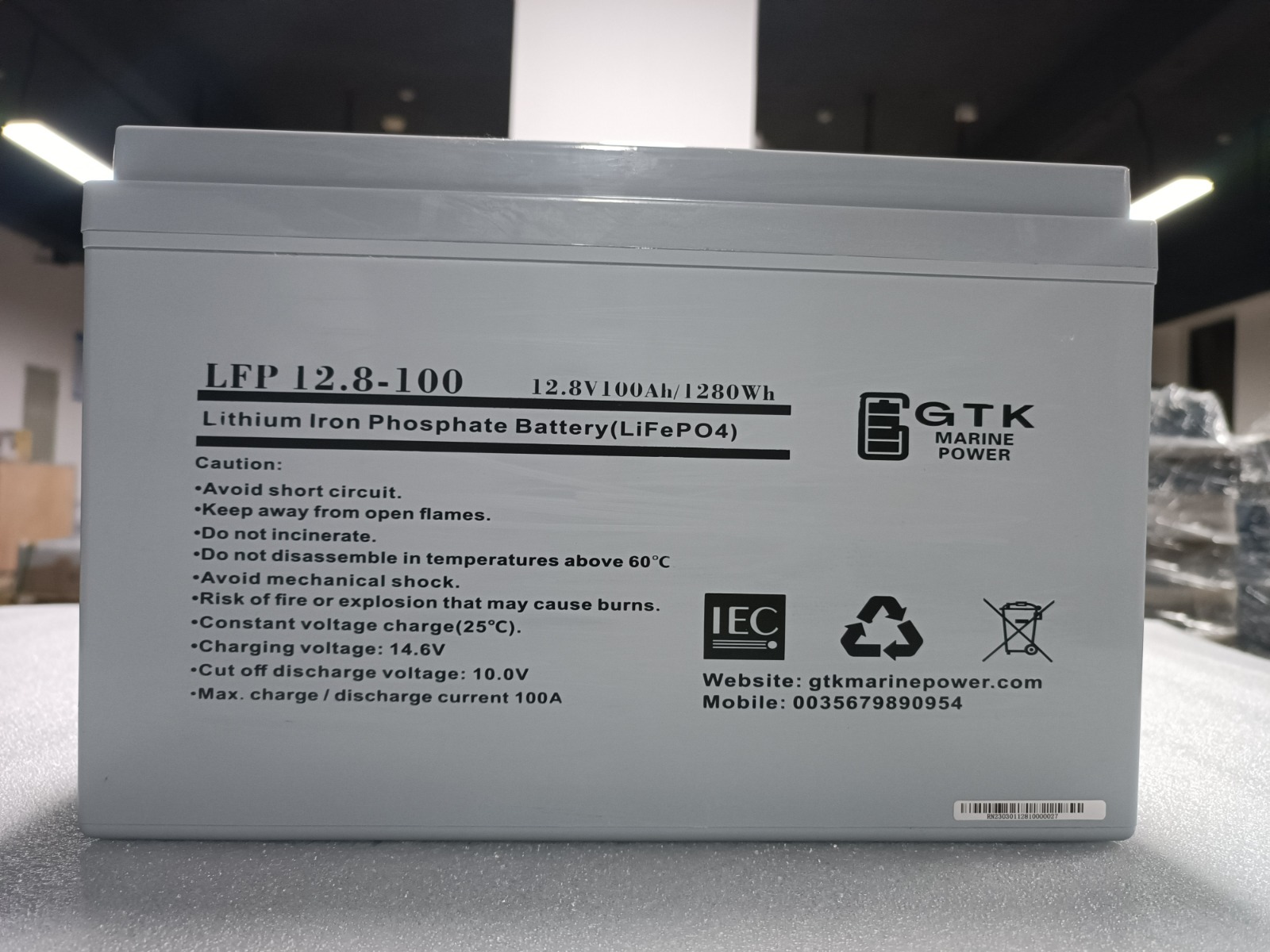

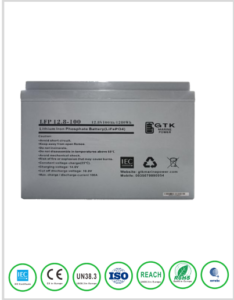

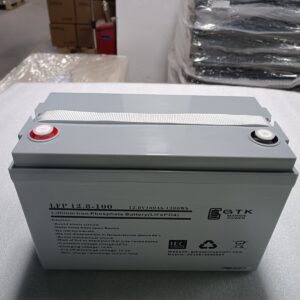

Lithium Battery – LFP 12.8 100- 100Ah

400.00 inc. VAT

LiFePO4 lithium iron batteries are widely used in industrial, residential, commercial and private applications. The maintenance-free construction and advanced design features make this lithium series the definitive choice for a wide variety of markets. Such as solar and renewable energy storage, electric vehicle, golf cart and industrial equipment, floor machines, forklifts, aerial lifts, and robotics; marine, RV, and no-idle solution; MobilityandMedical Equipment; Telecom, Broadband and CableTV; UPSsystems.







Battery Specifications

Battery type-Chemistry  LiFePO4  Voltage Window  10.8-14.4V
Nominal Voltage  12.8V  Recommend Charge  14V
Nominal Capacity  100Ah  Max Charge Voltage  14.6V
Energy Density  1280Wh  Recommend Charge Current  20A
Dimensions(LxWxH)  330*172*220mm  Max Continuous Current  100A
Weight  10.5KGS  Recommend Discharge Voltage  11.2V
Terminal Type  M8  Max Discharging Voltage  10.8V
Terminal Torque  12.4NM  Max Continuous Discharge Current  100A
Case Material  ABS  Peak Discharge Current  200A/3S
BMS build-in  Yes  Cycle Life(0.2C, 25°C@80% DOD)  6000 Cycles
AH Efficiency – round trip  >98%  Discharge Temperature  (- 20 to 55)°C
Self Discharge per Month  <3%  Charge Temperature  ( 0 to 55)°C
Max in Parallel  4 PCS  Storage Temperature  (- 20 to 45)°C
Max in Series  4 PCS  Heating Function  Optional
LCD Screen  Optional  Bluetooth(App)  Optional

BMS Characteristics

Primary Charging Protection  Current:110A Delay Time:  20s
Second Charging Protection  Current: 200A  Delay Time:  2~3s
Primary Discharging Protection  Current: 110A  Delay Time:  30s
Second Discharging Protection  Current: 200A  Delay Time:  2~3s
Over Charge Voltage Protection  Voltage:14.8V  Delay Time:  1~2s
Over Discharge Voltage Protection  Voltage:10V  Delay Time:  1~2s
 Temperature Protection  PCB  Temperature≥95
Recover≤85
 °C
Communication Port  No

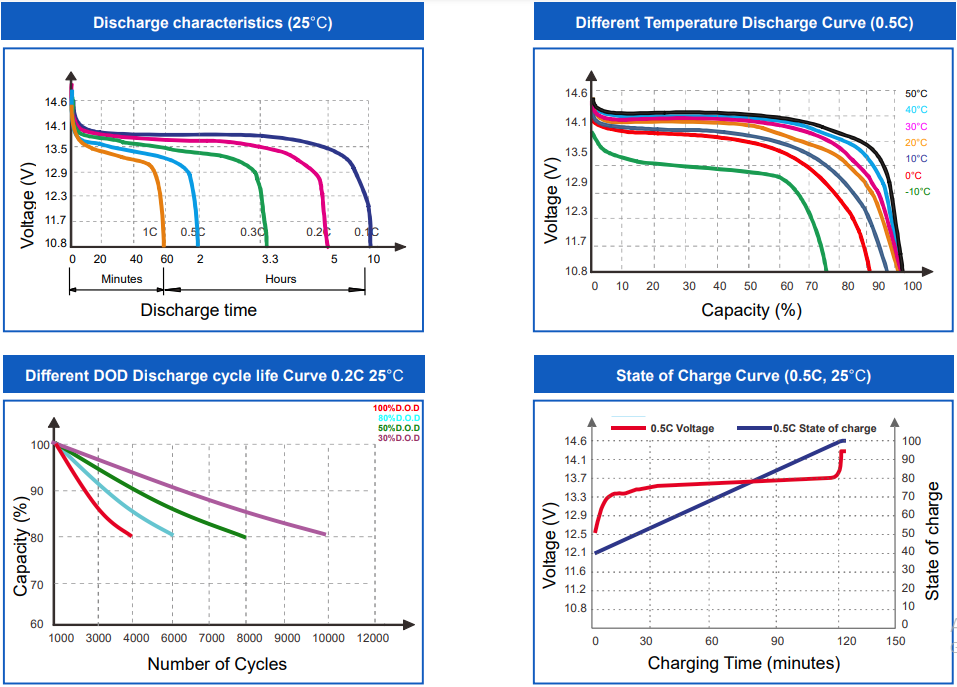

Constant Current Discharge Data (Amperes @ 25°)

Discharge Time  1h  2h  3h  4h  5h  10h  20h
Cut off voltage (10.8V)  100A  50A  33.4A  25A  20A  10A  5A

Constant Power Discharge Data (Watts @ 25°C)

Discharge Time  1h  2h  3h 4h  5h  10h  20h
Cut off voltage (10.8V) 1280W  640W 426.7W 320W 256W 128W 64W

Note 1: Please always refer to the latest edition of our technical manual that published on our website to ensure safe and efficient operation.
Note 2: When make parallel connection, please full discharge batteries, then recharge after parallel connected; when series connect, pleasekeep batteries with same remain capacity.
Note 3: Parallel connection is only for longer backup time, not for larger output power.
